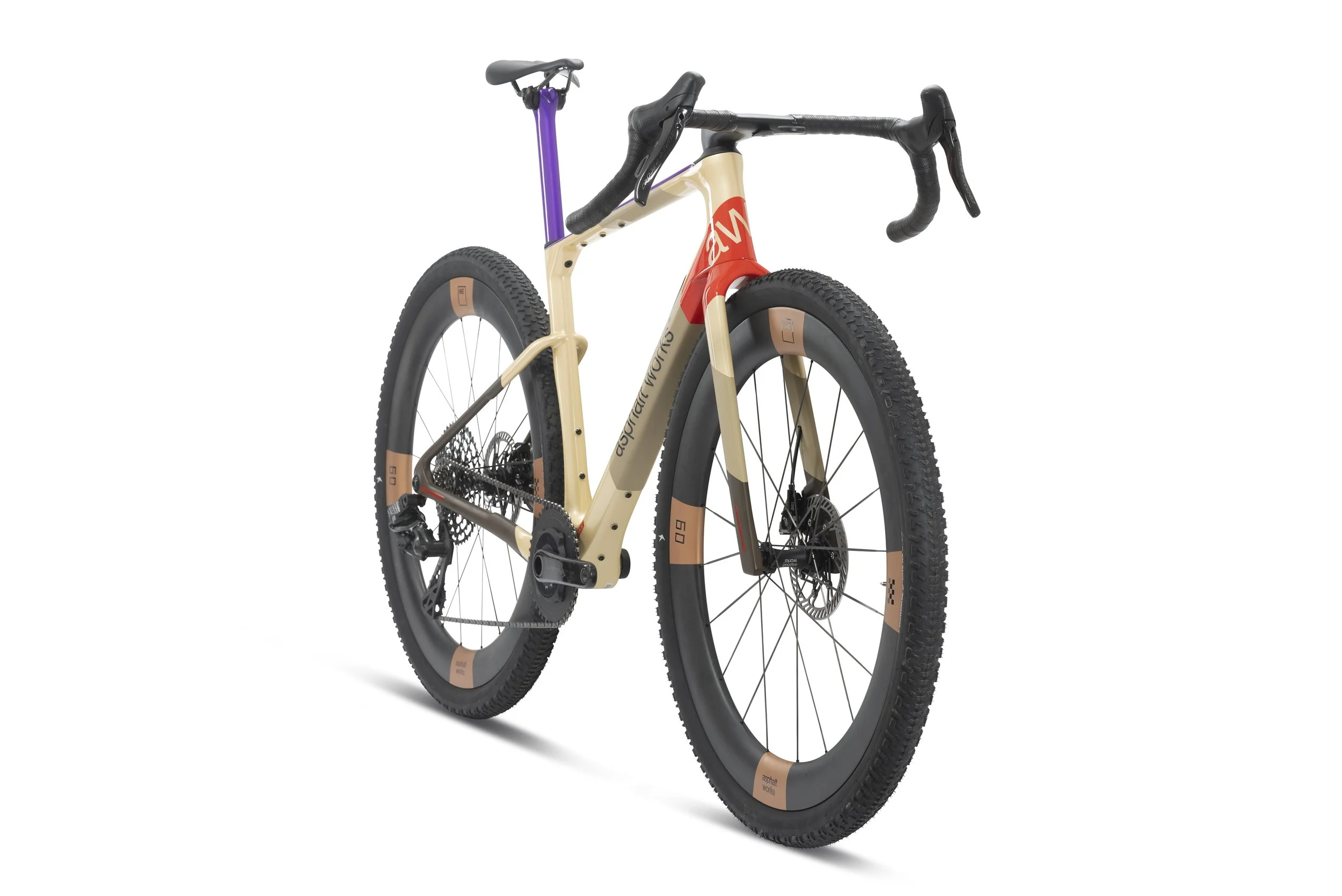

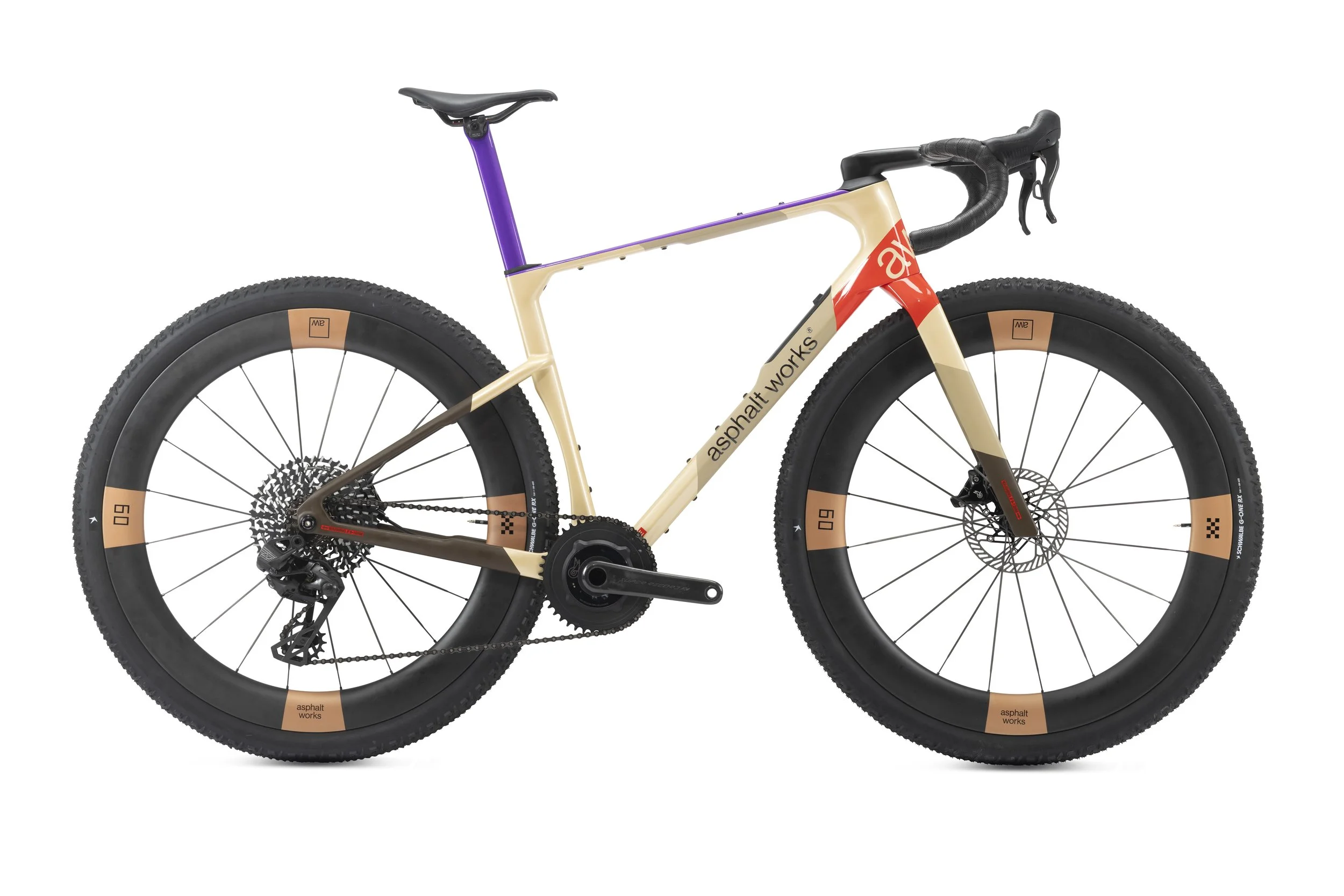

_grvl_goat_V.01
Our GRAVEL GOAT is the gravel bike exactly as we believe it should be.
Inspired by the mountain goat, which moves through the steepest terrain with unparalleled precision, this bike delivers maximum performance — uphill, downhill, and on every type of gravel surface.
Optimal power transfer, outstanding comfort, and absolute riding stability — whether climbing, descending at speed, or riding on the flat.
_technologies
Ultralight High Modulus Carbon with Smooth Wall Technology
True performance starts with the material.
Our carbon prepreg sheets—premium carbon fibers precisely impregnated with resin—are manufactured exclusively by our long-standing production partner, with whom we have worked closely for more than 15 years. Rather than relying on off-the-shelf materials, we maintain complete control over quality and manufacturing.

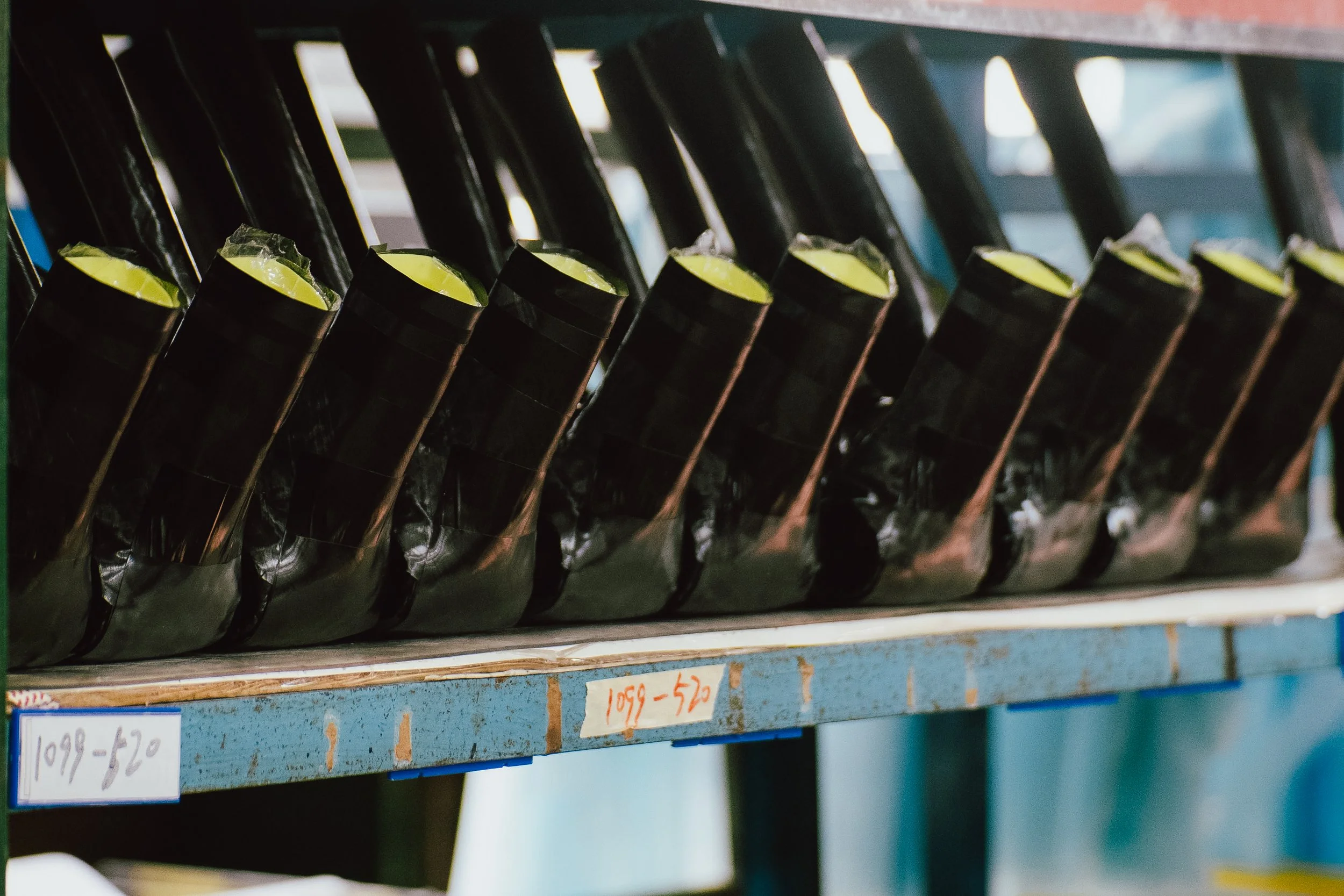

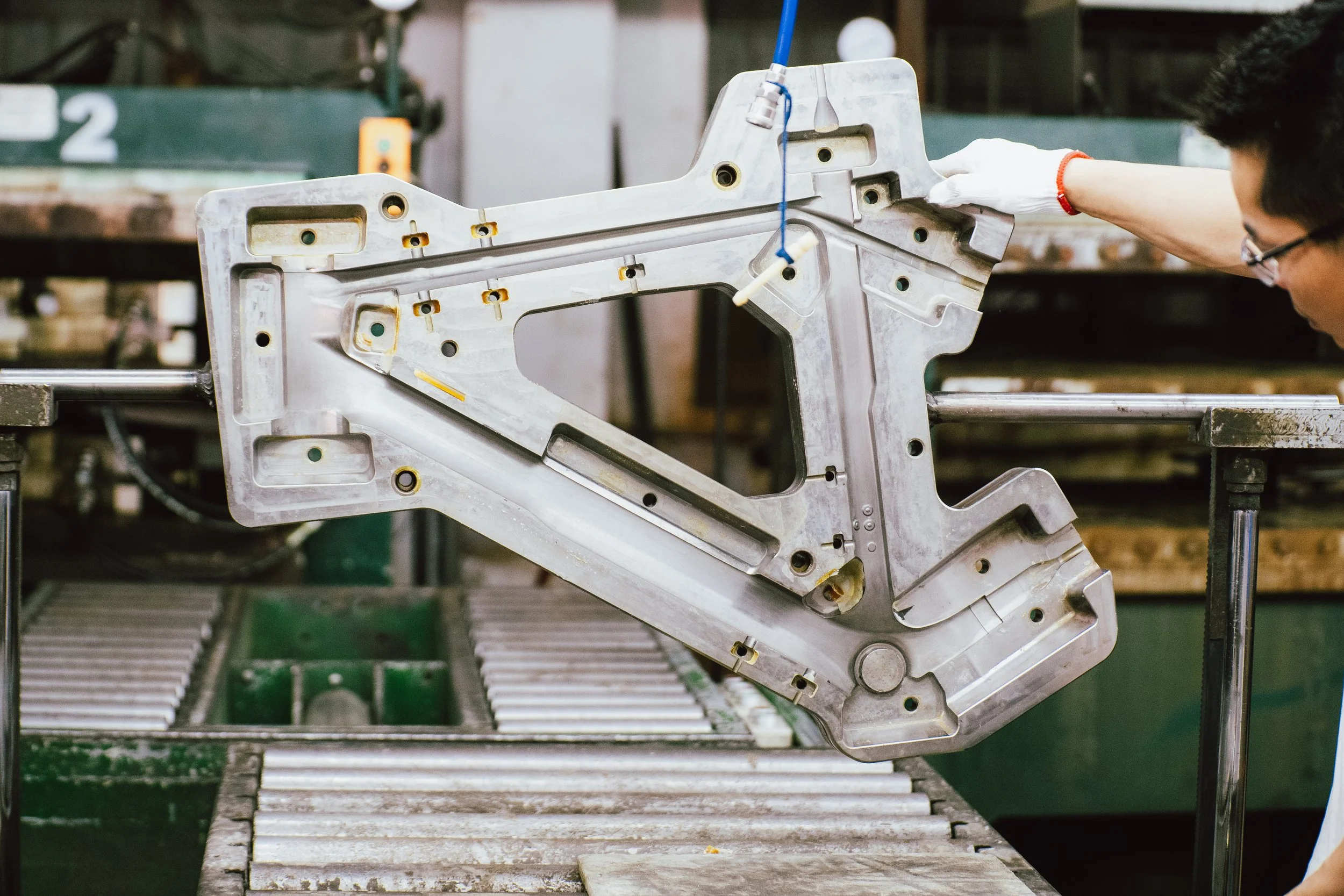

Every frame is built from more than 400 precisely cut carbon layers, meticulously hand-laid into a monocoque structure.
We use only premium carbon fibers from Mitsubishi and Toray—a decisive advantage reflected in performance, durability, and ride quality.
Our specially developed carbon prepreg materials feature a perfectly balanced resin content, creating an exceptionally uniform and durable laminate during production.
We consistently use premium EPS molding cores. Carbon is laminated directly over an EPS core, which is removed after curing.
This sophisticated manufacturing process ensures:
• Perfect carbon fiber structure
• No air pockets or material defects
• Minimum weight - Maximum strength
Our production process takes approximately 30% longer than conventional mass production—because genuine quality simply takes time.
_technologies
Optimized Head Tube Length

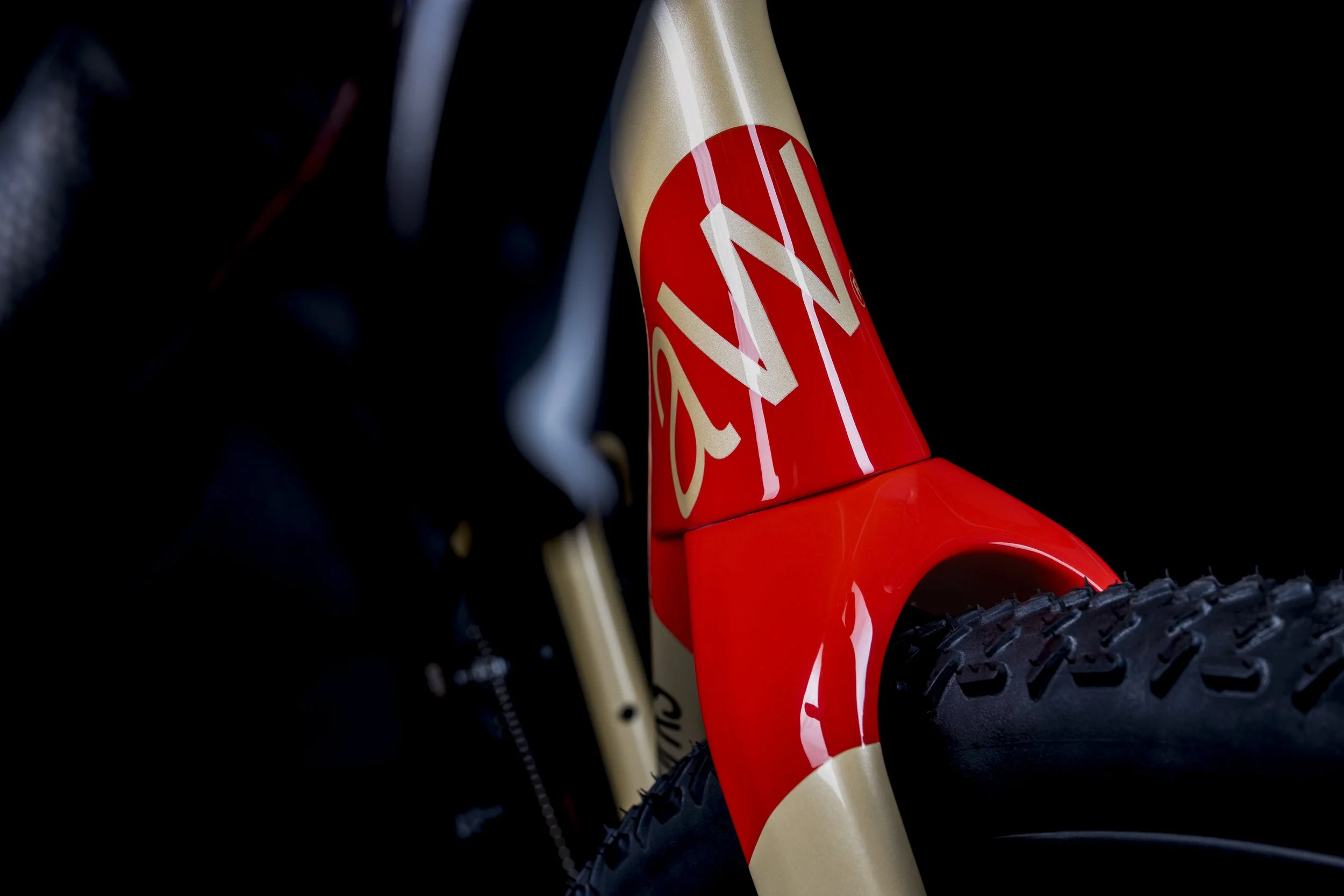

he optimized head tube length minimizes the need for potentially torsion-prone spacers, resulting in a stiffer front end and more precise steering.
Integrated Tools
Allen keys are integrated directly into the thru-axles, eliminating the need to carry additional tools.
A Lezyne tubeless repair kit is also integrated into the handlebar end plugs, providing maximum functionality while riding.

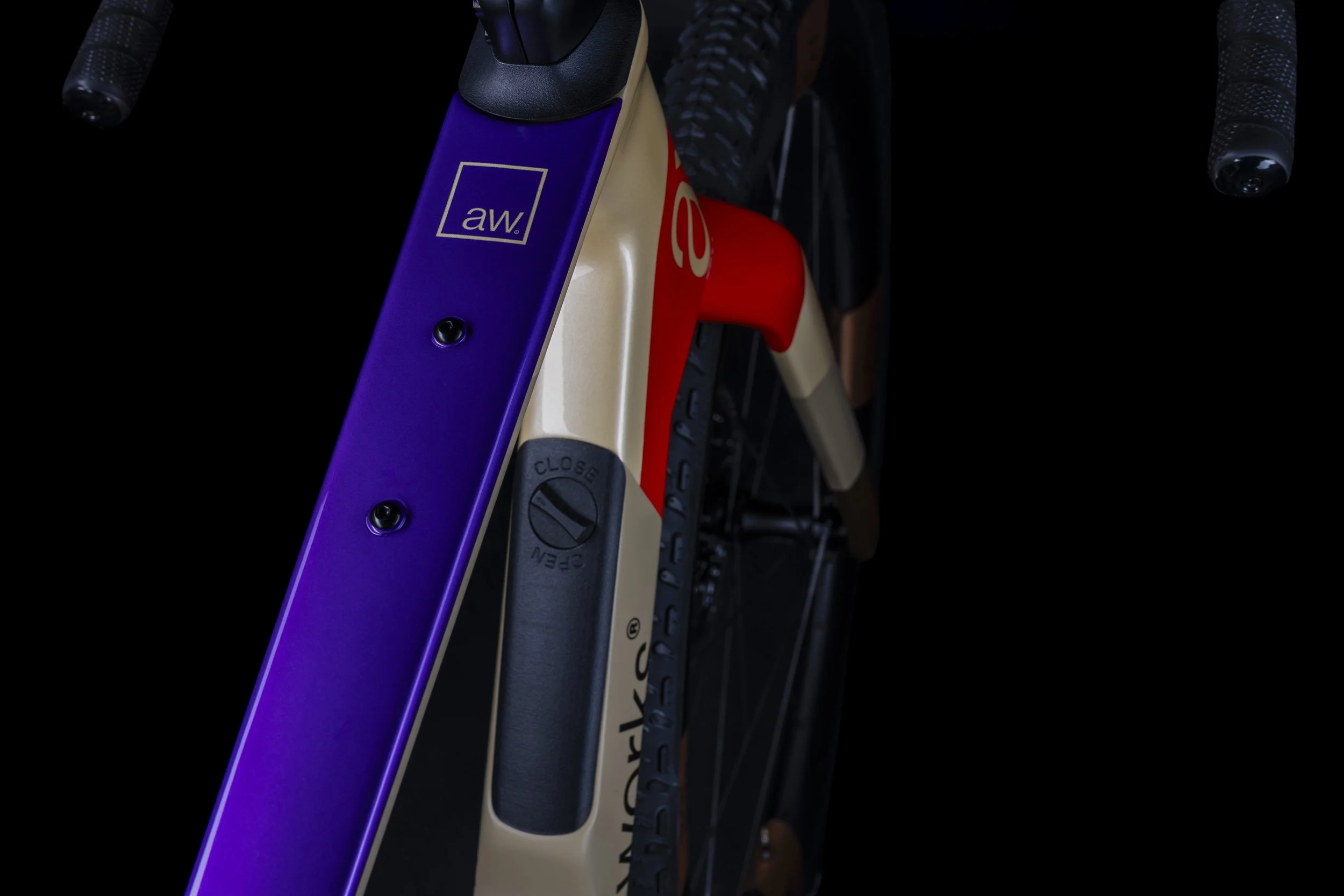

DOWNTUBE STORAGE BOX
We optionally offer an easily accessible storage box in the downtube. A particular highlight is our storage box cover with a special locking mechanism that completely prevents noise caused by the cover.
The frameset features the most common mounting points (threaded bosses).
These mounting points can also be customized according to your requirements.
_technologies
FRAME/WHEEL SYSTEM
Frame, cockpit components, and wheelset have been developed as one perfectly integrated system to maximize aerodynamics, drivetrain efficiency, control and comfort.
Before ordering your bike, you receive a professional bike fitting at our facility.
Integrated Cockpit Options with Computer Mount
A professional pre-purchase bike fitting and 18 finely tuned cockpit options
(from only 300 g) ensure your bike fits you perfectly.
Even after purchase, you benefit from maximum flexibility through our cockpit exchange program.
Seat Tube and seat post
The seat tube and seatpost feature an aerodynamic D-shaped profile.
Two seatpost options are available:
• S01: 0 mm setback
• S02: 15 mm setback
allowing precise adjustment of your riding position.
Fully custom seatposts are also available upon request.
_what makes this bike unique
Frame
_ ultralight High Modulus Carbon (T1000)
_ lightweight thru axle 12 x 142 mm (26 g)
_ tapered head tube: 1⅛“ to 1.5“
_ tire clearance: 55–58 mm, depending on tire profile
_ weight from 980g
_ custom layup available from 820 g
_ S01 – 0 mm setback
_ S02 – 15 mm setback
Seatpost
_ ultralight High Modulus Carbon (T1000)
_ lightweight thru axle 12 Å~ 100 mm (20 g)
_ tire clearance: 55–58 mm, depending on tire profile
_ weight: 430g
For safety reasons, we deliberately avoid extreme weight reduction.
Fork
_flat mount
Disc brake standard
_ 18 different gravel cockpit options
_ Stem lengths:
80, 90, 100, 110, 120, and 130 mm
_ Handlebar widths (tops/drops):
_ 360, 380, 400, 420
_ Reach: 78mm (optional 75mm)
_ drop: 137mm (optional 120mm)
Cockpit

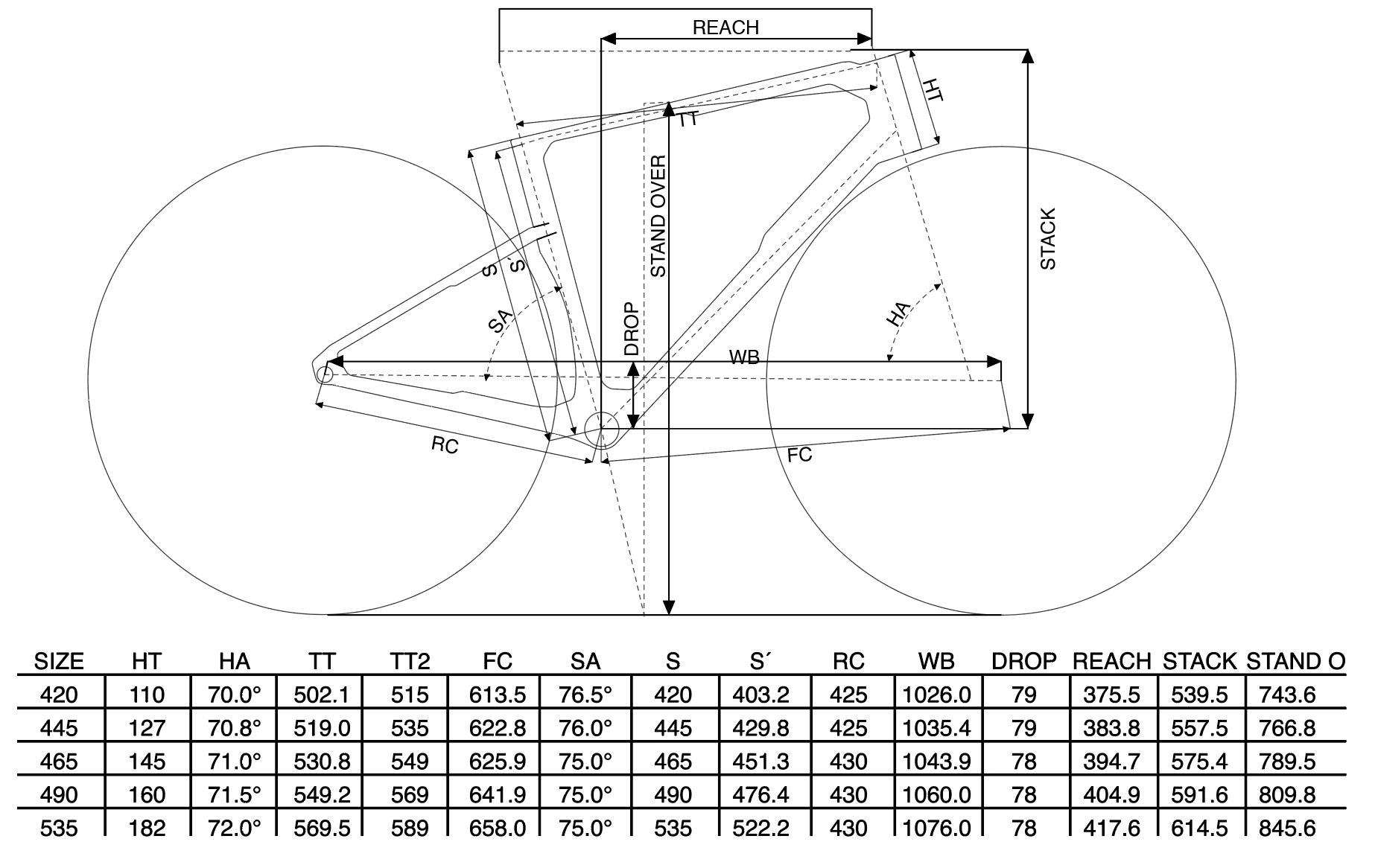

Size Seat Tube Top Tube Seat Angle
XS 420 mm 501 mm 76.5°
S 445 mm 519 mm 76.0°
M 465 mm 530 mm 75.0°
L 490 mm 565 mm 75.0°
XL 535 mm 571 mm 75.0°
Maximum rider weight:
120 kg (DIN EN Plus certified)
Frame Sizes
_ angular contact bearings
_ upper bearing:
1.5“ | ID42 | 45 × 45 SCB
_ lower bearing:
1.5“ | ID40 | 36 × 45 G5
_ compatible with FSA No.55R (recommended)
Headset
Prices
Please get in touch via our contact page or email.
